6 DOF Sensor

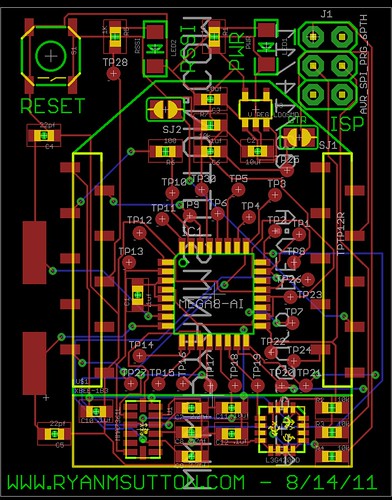

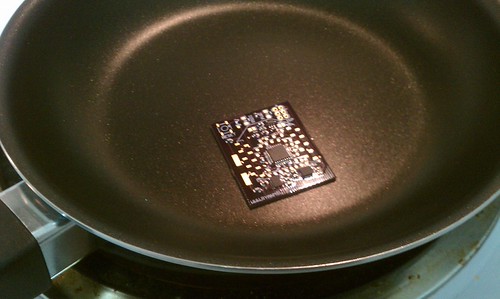

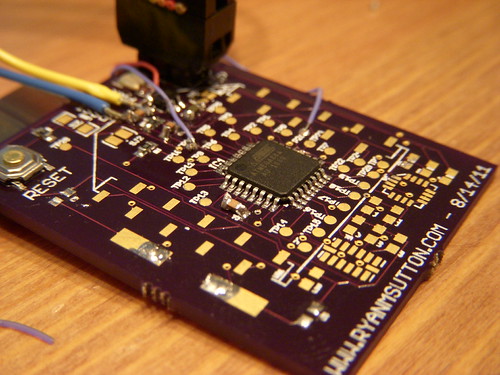

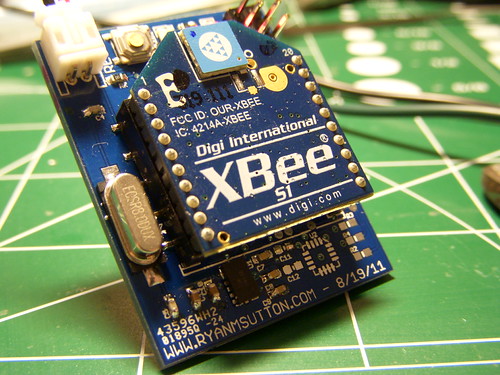

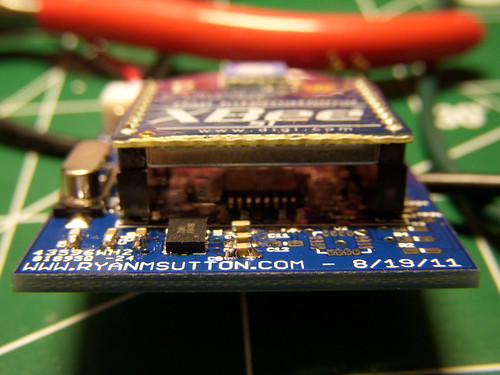

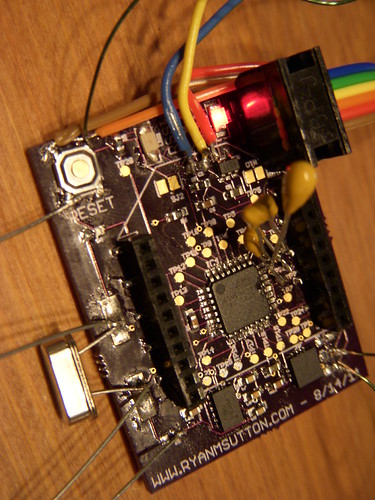

Built around the xBee footprint, an atmega88 sits underneath. An accelerometer and and gyroscope is on the lower edge. The atmega88 runs an arduino bootloader, and the software can be loaded over the xBee wireless connection. These are meant to be remote sensors for my datalogger. This has also been my experiment platform for building PCBs and doing SMT construction.
Files (Eagle)
AccGyro-REVD.brd
AccGyro-REVD.sch
AccGyro-REVC.brd
AccGyro-REVC.sch
AccGyro-REVB.brd
AccGyro-REVB.sch
AccGyro.brd
AccGyro.sch
Posts
Yikes! Invalid device signature.
[…] Only the accelerometer is giving me issues at the moment. It is doing the same thing as the 6dof board though so it could be something in my code. I also had a board to be used as a front panel […]
