Updated Dev Enviroment

In order to get some of the features like serial ports and I2C working on my atmega1284p chips, I needed to update the Sanguino core I have been using. The latest one published is based off arduino 0018 which works ok, but 0018 is before they had added strings and other useful features built into the core. I initially started updating the Sanguino core to 0021 which is what I was using as my dev environment but was having some issues with some conflicts in stdio and stdlib. From looking at the release notes the arduino team moved to register based pre-compiler directives rather then the CPU based ones used before. This method seems to be much better suited to alternative processors and is illustrated well here.

So I moved forward updating the Sanguino core files to 0023 which is the current version on arduino.cc. The modifications are pretty simple, update the pin outs in pins_arduino.c and everything else just falls into place.

I am currently working through testing functions on the atmega1284p I have gotten both UARTs  working with out issue.  I did need to make some modifications to the Wire library to get I2C working.  Just needed to have it add pullups to the correct pins, this could have been done in hardware but I like using the software pullups.  I believe SPI will work, but am still testing that.

Here are the modified Sanguino files which support 644p,1284p,and 1284p @8mhz and also the updated Wire library:

Sanguino-0023r1.zip UPDATED (details): Sanguino-0023r2.zip UPDATED (details): Sanguino-0023r3.zip UPDATED (details):Sanguino-0023r4.zip  UPDATED(details): Sanguino-0101r1.zip


GPS Logger Hardware v4.0

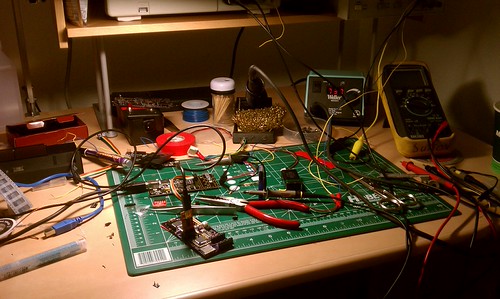

After having the boards for at least a month I finally built one up.  This board dosn’t really do much new it is basically my GPS logging hardware v3.1 built onto one board.  Since I was building my own boards I opted to use a atmega1284p since I was having issues running out of sram before (though I did clear that up in software).  So there are two atmega1284p processors one to deal with the GPS and sensors, and another to talk to remote sensors as well as build and write the GPX file to the SD card. I also added an accelerometer and gyroscope to add to the data the sensor uC is collecting, I will probaly replace the atmega1284p on the sensor side with a atmega88 if the memory utilization is low enough, the 1284 seems a bit overkill for what it is doing.
